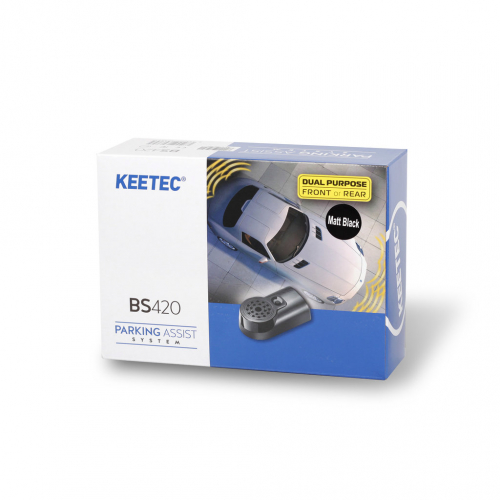

KEETEC BS 420
Parking sensors

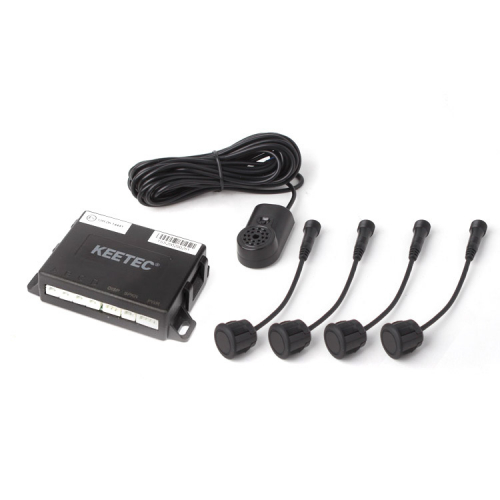

Parking assistant KEETEC with the option to install as Rear or Front, with 4 black sensors and buzzer. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. The unit is designed for 12V/24V on board voltage cars.

System Description:

  • sensors with fixed assembly to the bumper
  • fast obstacle detection
  • excellent coverage of the entire area behind or before the vehicle
  • when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • auto detection (automatic identification of the defective sensor)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°

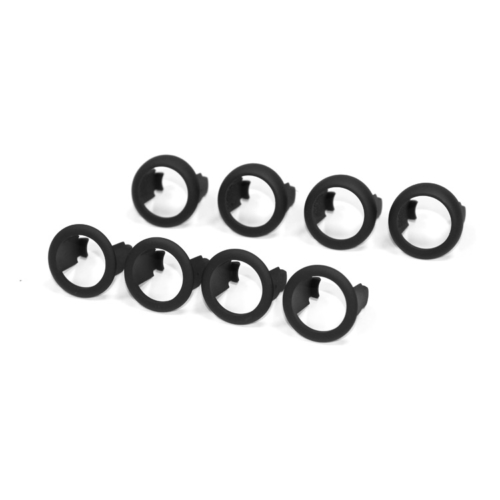

  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm

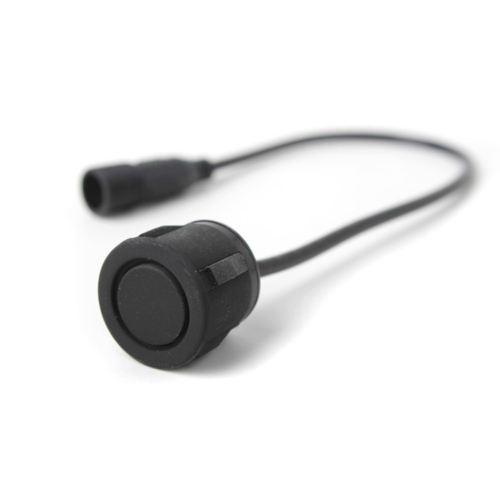

  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • adjustable sensitivity of the sensors on the control unit (2 levels)
  • the unique learning function (ignoring permanent obstacle – tow bar, spare wheel, frame, …)
  • with additional ACC wire (pink wire) for stable power supply(optional connection)
  • djustable volume directly on the buzzer body (3 levels)
  • control unit is not waterproof, must be installed in dry place

Technical parameters:

  • Operating voltage: 9 ~ 27V DC
  • Working current : < 250Ma
  • Speaker: 80 ± 10dB
  • Detection range rear: 0.3 ~ 2.59 m
  • Detection range front : 0,3 ~ 0,99 m
