Front and rear parking sensors

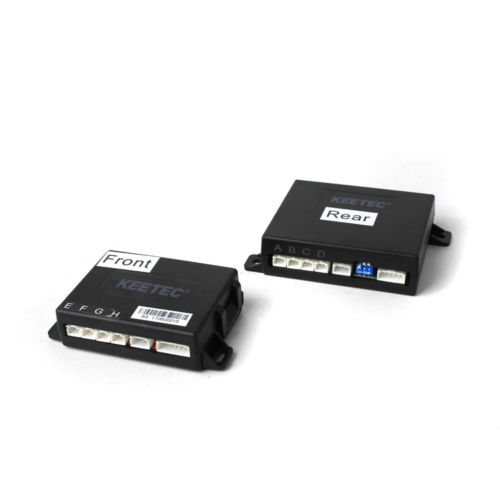

Front and rear Park Assist system KEETEC with 8 sensors, 2 buzzers with volume and tone adjustment. New control units allow to set the sensitivity of sensors, and also to set off delay of front sensors in two levels.
Technical parameters:

  • acoustic signalisation
  • buzzers with the switches allow to set the volume and tone
  • sensors are mounted in the front and back bumper
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • sensors sensitivity adjustable
  • off delay of the front sensors after releasing the brake pedal (8s or 20s)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package

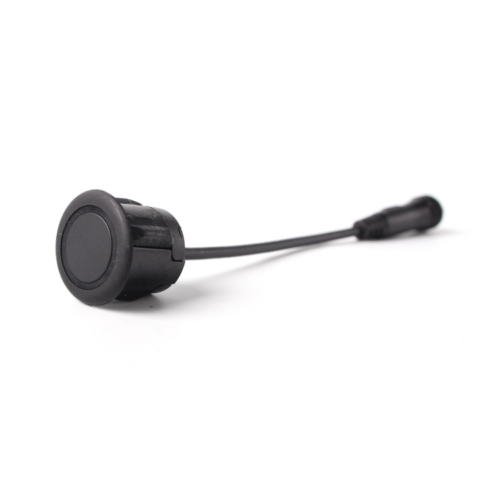

  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensor diameter 18,5mm

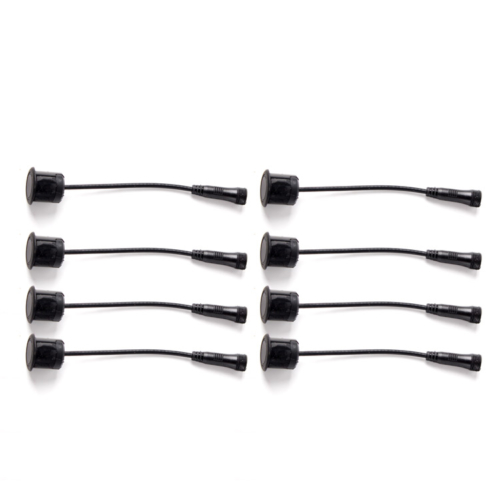

  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook – measuring shift +20 cm (reserve, drawing, frame, …)
  • fast obstacle detection
  • automatic detection of damaged sensor
  • supply voltage: 12V DC
  • working power: <2.5 W
  • display range (front / rear): 0,3 ~ 1,0m / 0,3 – 1,5m
